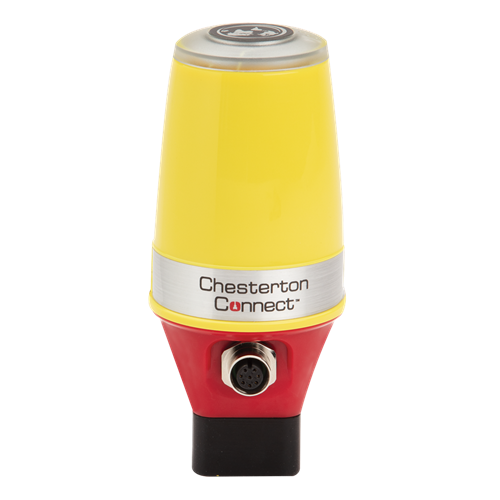

Intrinsically Safe

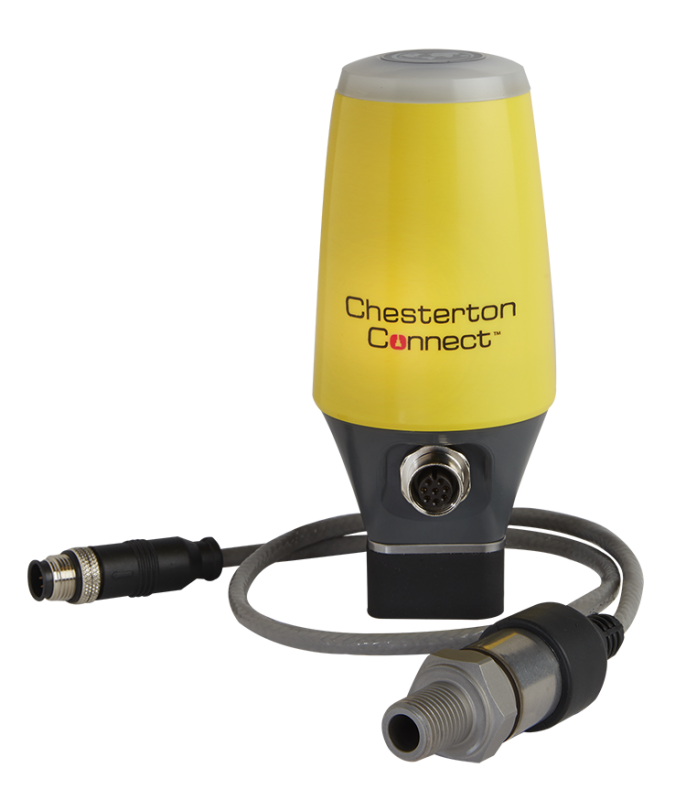

Connect™ Equipment Monitor


Simplified Equipment and Process Monitoring for Pumps and Sealing Systems

​​​Chesterton Connect is a simple to use data acquisition tool that enables you to safely and conveniently monitor your process and equipment’s operating conditions. Using Bluetooth® technology and a robust design to withstand harsh environments, Chesterton Connect makes it easy to monitor:

  • Equipment vibration
  • Surface temperature
  • Process temperature
  • Process pressure

 Easy to install, Chesterton Connect combined with the user-friendly app allows you to connect to multiple sensors,​ providing you with a comprehensive view of your plant’s equipment health. By setting thresholds, the mobile app and in-unit’s LED display system alerts you of undesirable events. This alert system helps you better allocate resources to avoid unplanned downtime and asset failure. The data can be exported for analysis to help you understand your equipment’s operation and take preventative actions to extend productivity.

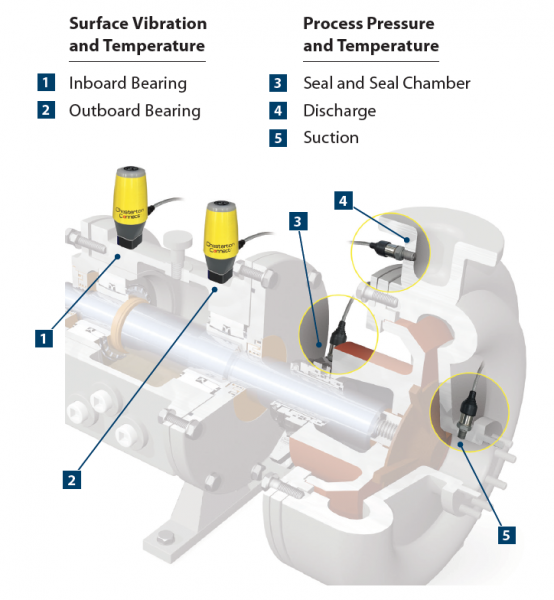

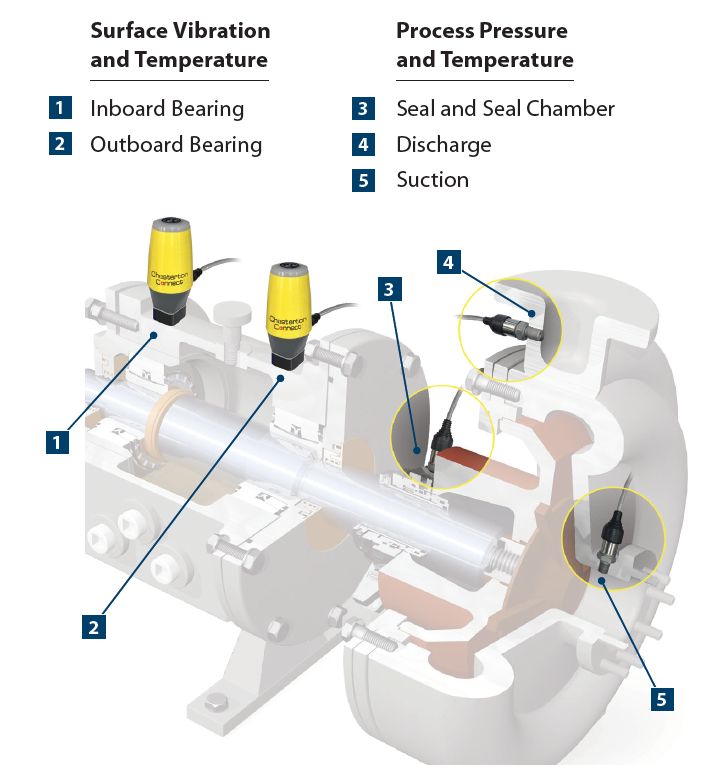

Applications:  For use on pumps, mixers, agitators, and many other types of rotating equipment


For additional information: Manufacturer's Website open_in_new

Specifications

Battery3.6 lithium thionyl chloride battery (replaceable)
CertificationsNSF61
ConnectivityBluetooth V4
EnclosureFCC, IC, RoHS, IP66, NSF61, ACS, Instrinsically Safe (Optional. See Below.)
Fitting1/4" NPT 316SS connection
GPS Location InformationNo
MonitoringLocal / remote
MountingMagnetic mounting base (additional mounting options sold separately)
Pressure sensor limit68 bar g (1000 psig)
Remote Control of EquipmentNo
Requires Subscription ServiceNo
Temperature limit (body)-20°C - 85°C (-4°F - 185°F)
Temperature limit (sensor)-20°​C - 125°C (-4°F - 257°F)
Vibration sensor3-axis accelerometer ±16g

Accessories

  • Power-up Cap #403679 - Used to power up the device in applications where pressure sensor is not needed
  • Extension Cable, 18" #403680 - Used to extend the pressure sensor cable
  • Pressure Sensor Cable #412963 - Replacement pressure sensor cable
  • Battery #403683 - Replacement battery
  • Mounting Plate #403685 - Used to mount to non-magnetic surfaces

Options & Accessories

Connect™ App
Connect to your i-ALERT sensor with the i-ALERT App.  Available for use with Android and iOS devices.
Connect™ Cloud
Monitor, analyze, and compare equipment intelligence from wherever you are Chesterton Connect™ is a simple-to-install, comprehensive equipment sensor and app that provides 24/7 monitoring...
