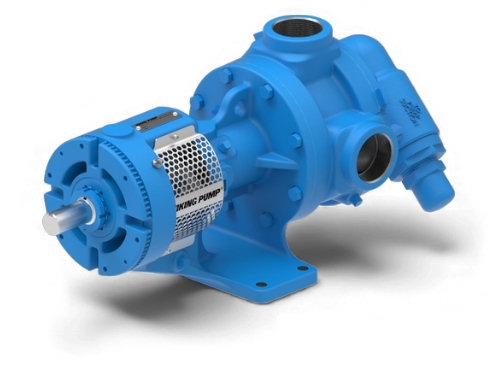

Internal Gear Pumps

The internal gear pumping principle was invented by Jens Nielsen, one of the founders of Viking Pump. It uses two rotating gears which un-mesh at the suction side of the pump to create a vacuum which pulls fluid into the pump. The spaces between the gear teeth transport the fluid on either side of a crescent to the discharge side, and then the gears re-mesh to discharge the fluid. We are an authorized stocking distributor for Arizona & Nevada.

Features & Benefits

  • Reliable and Easy to Maintain - Only two moving parts.
  • Adjustable End Clearance - For low or high viscosities, high temperatures, or to compensate for wear over time.
  • Shaft Seal Options - Including packed gland, lip seal, component seal, cartridge seal and sealless mag drive options.
  • Porting Options - Viking's broadest selection of port locations, configurations, and types.
  • Minimal Pulsation - For accurate flow measurement.
  • One Shaft Seal - More reliable and lower cost than two used on timed lobe and screw pumps.
  • Compact, Close-Coupled Options - For motor speed operating or with gear motors.
For additional information: Manufacturer's Website open_in_new

Specifications

ConstructionCast Iron, Ductile Iron, Stainless Steel, Steel
Discharge Size1-1/4" - 10"
Flow Rates to1,600 GPM
Pressures to250 PSI (578' TDH)
Temperatures to800° F
Viscosity Range28 to 2,000,000 SSU

Options & Accessories

Flexible Seal Options
Viking offers a wide range of sealing options including packing, component seals & cartridge seals.
O-Pro™ Seals for Viking Gear Pumps
Viking Pump is the leader in internal gear innovation and the latest development is O-Pro™ Seal technology. O-Pro™ Seals utilize a series of O-rings to create a robust seal and lubricatio...
PumpSmart PS220 Variable Speed Pump Controller
PumpSmart provides real-time control and protection of your pumps while also providing valuable process insight. By protecting against unplanned pump failure due to process upsets, we can keep your p...
More Info
Lid-Ease® Basket Strainers
Viking Lid-Ease® strainers provide protection for any pumping system by preventing solids or foreign materials from entering the pump. Quarter-turn, easy opening breech-lock lid simplifies rout...
More Info
Bolted-Lid Strainers
Viking Bolted-Lid strainers provide protection for any pumping system by preventing solids or foreign materials from entering the pump. Strainer bodies available in ductile iron. Inclined basket...
More Info
Basket Strainers
An industrial basket strainer filtration system consists of a closed vessel with a basket having interwoven mesh screens or perforated metals that are designed to remove solid debris from fluids as i...
More Info
Inline Gear Reducers
Viking offers eleven sizes of in-line, double reduction gear reducers to reduce standard driver speeds to match pump (or other driven equipment) requirements. With the in-line design, the input (high ...
More Info
Offset Gear Reducers
Viking offers three sizes of offset, gear reducers with an adjustable height bracket. Features: Ratios are fully interchangeable in each gearbox Multiple mounting brackets enable output shaft t...
More Info
Shaft Power Monitors
The Emotron M20 shaft power monitor offers pump protection for positive displacement and centrifugal pumps.  The Emotron M20 utilizes a sensor that detects current from the electric motor.  ...
More Info
