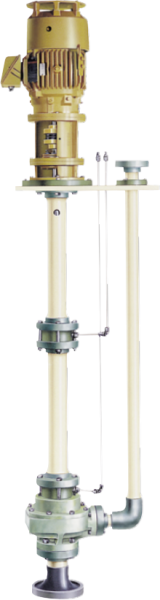

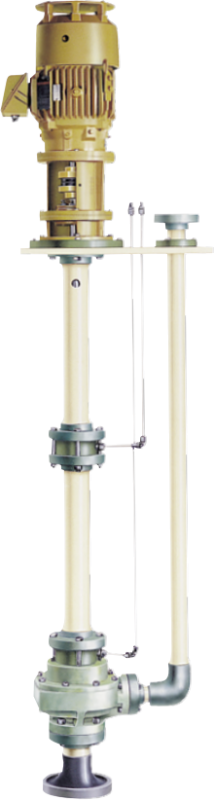

Goulds NM 3171 Pump

NM 3171 Non-Metallic Vertical Process Pumps

For severe corrosive applications. Casing and impeller interchangeable with Model NM 3196. Cost-effective alternative to high alloys.

Design Features

  • Cost Effective Alternative to High Alloys
  • Corrosion Resistant RULON® Column Bearings
  • Casing and Impeller Molded with High Strength, Corrosion Resistant GMP-2000*
  • Casing and Impeller Interchangeable with Goulds Model NM 3196
  • Rugged Double Row Thrust Bearing
  • Thrust Bearing Sealed Against External Contamination
  • Heavy Duty One-Piece Solid Shaft
  • External Impeller Adjustment

For additional information: Manufacturer's Website open_in_new

Specifications

ConstructionFiberglass Reinforced Vinyl Ester Resin
Discharge Size1" to 4"
Flow Rates to1,250 GPM
Heads to300' TDH (130 PSI)
Temperatures to200° F

Options & Accessories

PumpSmart PS220 Variable Speed Pump Controller
PumpSmart provides real-time control and protection of your pumps while also providing valuable process insight. By protecting against unplanned pump failure due to process upsets, we can keep your p...
More Info
i-ALERT3 Equipment Condition Monitor
ITT i-ALERT3 is the advanced machine health sensor that quickly and accurately diagnoses status and warns of issues prior to occurrence for a variety of machines. Easy, secure integration with ex...
More Info
PumpSmart PS20 Shaft Power Monitor
The PumpSmart PS20 shaft power monitor offers pump protection for fixed speed positive displacement and centrifugal pumps. The PS20 utilizes a sensor that detects current from the electric motor. It i...
More Info
