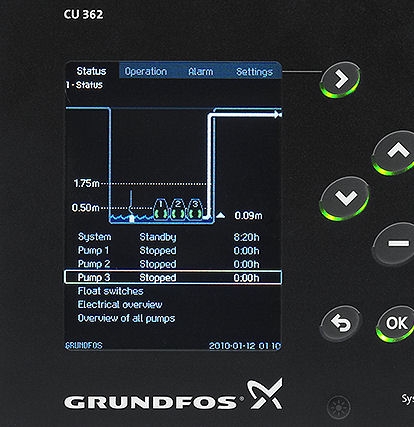

CU 362 Wastewater Pump Controller

Grundfos Dedicated Controls is an intelligent monitoring and control solution developed specifically for network pumping stations and commercial buildings. Designed to control groups of up to six pumps in sewage pumping stations, this solution is an excellent choice for wastewater lift stations, stormwater stations, influent/effluent stations and many other similar applications. A range of advanced features allow for system measurement and calculation, and integration with other monitoring, control and energy optimizing equipment. Gain full control of your system - from anywhere.

For additional information: Manufacturer's Website open_in_new

Specifications

GRM CapabilitiesMonitor & Control
MountingControl Panel
Multi-Pump ControlYes
Multi-Pump QuantityUp to 6 Variable Speed or Constant Speed Pumps
Operation ModesStation Flow Calculations (Sensorless)

Options & Accessories

IO 351B Input Output Module
Input/Output module for a 2-pump configuration utilizing ball floats or any 4-20mA level detection device.
Level Sensors
Submersible sensors for hydrostatic level measurements.

MP204 Motor Protection Module
For use with across-the-line and soft-starter applications.  Monitors and protects pump on station voltage, pump current, etc. Built in megger for testing motor winding insulation.
CUE Variable Speed Pump Controllers
The Grundfos CUE is a variable frequency drive for the effective speed control of any Grundfos pump without integrated drives, irrespective of size or area of application. Grundfos CUE is an integral...
More Info
GRM Remote Management System
Internet-Based Remote Management System With this secure and reliable remote management system, you can monitor and manage your pump systems from an Internet PC at a very low price. Grundfos Rem...
More Info
IO 113 Input Module
The Grundfos Input Module IO 113 forms an interface between a Grundfos wastewater pump with analog and digital sensors and the pump controller. They are mainly used with Grundfos SE/SL 9-30 kW and S ...
More Info
S, SE, SL Series Submersible Pumps
S pumps form the backbone of many sewage systems. They are selected for their strength, their durability, and for innovative features such as the SmartTrim impeller clearance adjustment system and th...
More Info
