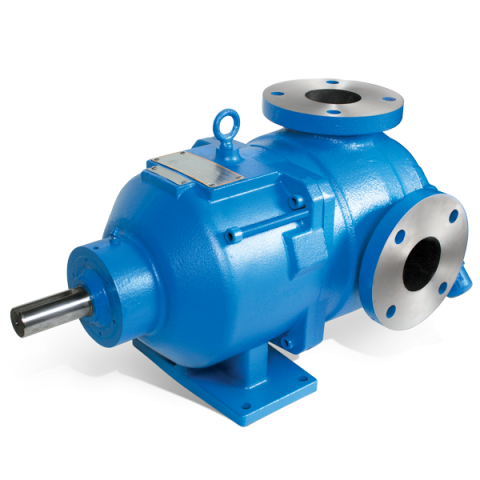

Universal Magnetic Driven Gear Pumps

Viking's Universal Mag Drive series can reduce maintenance and environmental costs through eliminating the pump shaft seal.

Features

  • Reduces maintenance costs and downtime associated with shaft seal failure and replacement.
  • Reduces environmental costs associated with shaft seal leakage.
  • Minimizes installation costs when upgrading existing universal series pumps to sealless with dimensionally interchangeable footprint.
  • Bi-directional pumping design eliminates cost of second pump for loading or unloading.

Options

  • Sealing / Coupling: Neodymium Iron Boron, Samarium Cobalt
  • Porting: Opposite (180°) (Rotatable Casing), Right Angle (90°) (Rotatable Casing), NPT/BSP, Flanged (ANSI or DIN Compatible)
  • Mounting: Foot Mount

For additional information: Manufacturer's Website open_in_new

Specifications

Discharge Size1-1/2" - 6"
Flow Rates to500 GPM
Pressures to200 PSI (462' TDH)
Temperatures to500° F
Viscosity Range28 to 250,000 SSU
