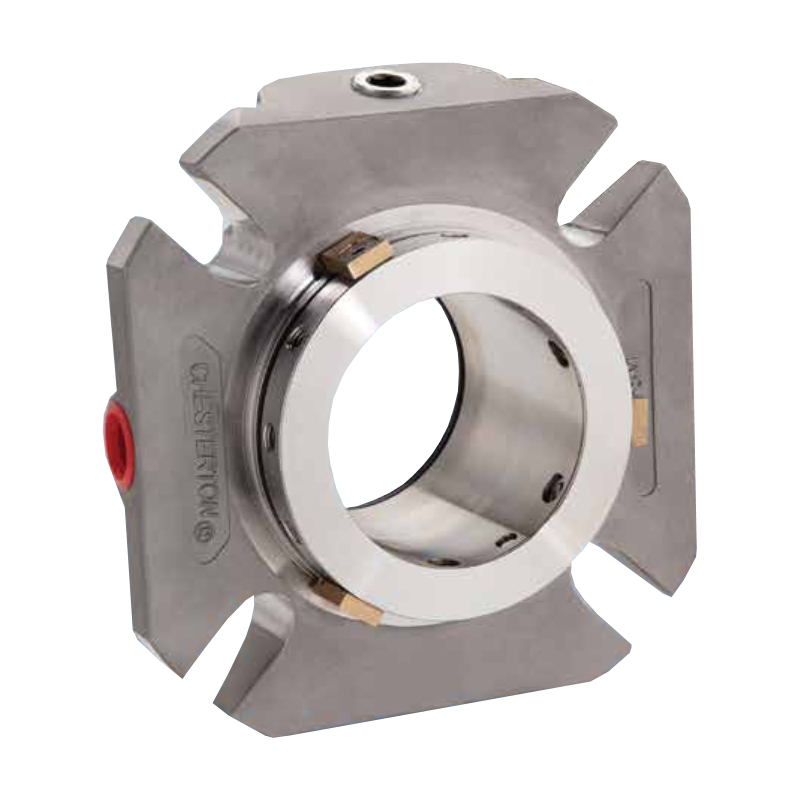

1810 & 2810 Heavy Duty Modular Cartridge Seals

These Chesterton® cartridge seals offers you the ultimate in seal quality, flexibility, and convenience. Leveraging Chesterton​​’s proprietary AXIUS modular platform, the 1810 & 2810 can be configured with several different face profiles and auxiliary components which allows performance to be tailored to a wide range of process conditions. Phoenix Pumps, Inc. carries a variety of these seals on the shelf in Phoenix, Arizona for quick delivery.

For additional information: Manufacturer's Website open_in_new

Specifications

ElastomersFKM, EPDM, FEPM, FFKM
FacesCB, SSC, TC
Metals316 Stainless Steel (EN 1.4401)
Pressure Limit711 mm or 28" Hg Vacuum to 40 bar g (600 psig*)
Shaft Speed25 m/s (5000 fpm)
Sizes25 mm – 120 mm (1.00" – 4.75)
SpringsAlloy C-276 (EN 2.4819)
Temperature Limit–55°C – 300°C (–67°F – 570°F)

Options & Accessories

PSS Pressurized Support System for Dual Seals
Standard Plan 53A Tank The Chesterton Pressurized Support System (PSS) is a complete solution for the support of dual seals where product leakage cannot be tolerated. Supplied ready to...
More Info
WSS Water Saving System for Dual Seals
Plan 53P Automatic Water Support Tank The Chesterton Waster Saving System (WSS) is a complete seal support system designed to maintain water barrier pressure and levels without maintena...
More Info
BSS Buffer Support System for Dual Seals
Plan 52 Non-Pressurized Tank The Chesterton Buffer Support System (BSS) is a complete solution for the environmental support of dual seals where product contamination from support fluid cann...
More Info
SpiralTrac Environmental Controller
The SpiralTrac™ Environmental Controller is an exclusive, patented throat bushing specially engineered to transform and control the internal stuffing box environment in rotating process equipme...
More Info
