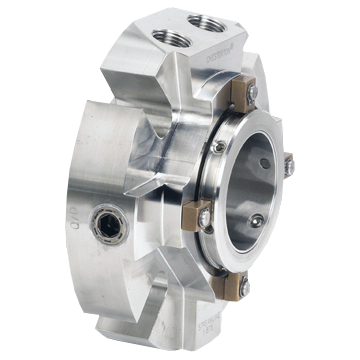

S10 & S20 High Performance Cassette Seals

High-Performance Modular Cassette Seal

These high-performance mechanical seals have a unique modular cassette design that combines advanced seal technology with flexibility in maintenance and repair. Repair becomes a matter of simply exchanging cassettes, making it faster and easier, while significantly reducing costs.​

For additional information: Manufacturer's Website open_in_new


ElastomersFKM, EPDM, FEPM, ChemLast™
FacesCB, SSC, TC
Metals1.4401 (316SS)
Pressure Limit711 mm (28") Hg Vacuum to 30.6 bar g (450 psig)
Shaft Speed25 m/s (5000 fpm)
Sizes25 mm to 120 mm (1.00" to 4.75")
Springs2.4819 (Alloy C-276)
Temperature Limit-55° C to 300° C (-67˚ F to 570˚ F)

Options & Accessories

Replaceable Cassettes
Save money by replacing the easy-to-install cassette and reuse your existing S10/S20 seal housing.
PSS Pressurized Support System for Dual Seals
Standard Plan 53A Tank The Chesterton Pressurized Support System (PSS) is a complete solution for the support of dual seals where product leakage cannot be tolerated. Supplied ready to...
More Info
WSS Water Saving System for Dual Seals
Plan 53P Automatic Water Support Tank The Chesterton Waster Saving System (WSS) is a complete seal support system designed to maintain water barrier pressure and levels without maintena...
More Info
BSS Buffer Support System for Dual Seals
Plan 52 Non-Pressurized Tank The Chesterton Buffer Support System (BSS) is a complete solution for the environmental support of dual seals where product contamination from support fluid cann...
More Info
SpiralTrac Environmental Controller
The SpiralTrac™ Environmental Controller is an exclusive, patented throat bushing specially engineered to transform and control the internal stuffing box environment in rotating process equipme...
More Info
