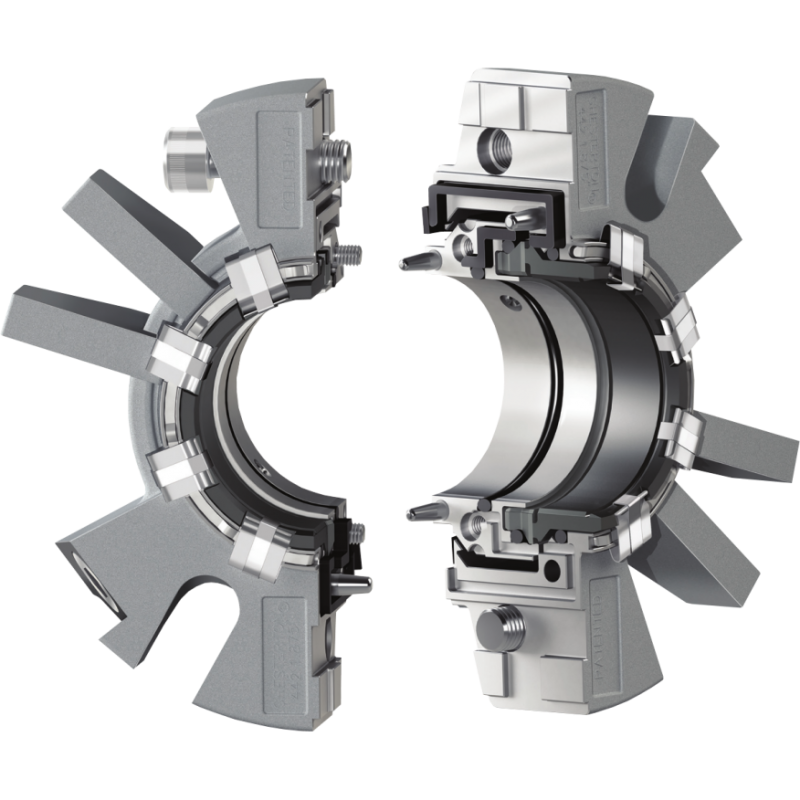

442C Cartridge Split Seal

Simple, Fast Installation and Greater Sealing Reliability

The Chesterton 442C™ Cartridge Split Seal combines superior seal performance with the ease of installation of a cartridge seal. The patented split seal technology addresses the inherent limitations found in conventional cartridge split seal designs by minimizing installation complications and excessive leakage. As with all split seal options, it offers easy installation and replacement without the need for teardowns.

For additional information: Manufacturer's Website open_in_new


ElastomersFKM, EPDM, FEPM, ChemLast™
Metals1.4401 (316SS)
Pressure Limit711 mm (28") Hg Vacuum to 30 bar g (450 psig)
Shaft Speed20 m/s (4000 fpm)
Sizes25 mm to 120 mm (1.00" to 4.750")
Temperature Limit120° C (250° F)

Options & Accessories

442C XL Cartridge Split Seal
Split Seal for Extra Large Shafts Equipment disassembly leads to high maintenance and operating costs as well as safety risks, but with extremely large pumps and other rotating equipment the stakes ...
More Info
SpiralTrac Environmental Controller
The SpiralTrac™ Environmental Controller is an exclusive, patented throat bushing specially engineered to transform and control the internal stuffing box environment in rotating process equipme...
More Info
